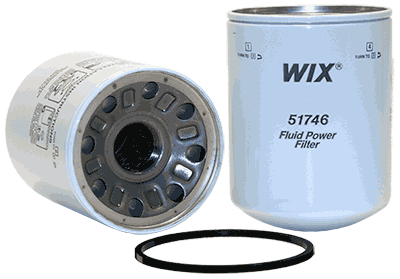

| Part Number: | 51746 |
| UPC Number: | 765809517462 |
| Style: | Spin-On Hydraulic Filter |
| Service: | Hyd/Transmission |
| Type: | Full Flow |
| Media: | Enhanced Cellulose |
| Height: | 6.872, (175)* |
| Outer Diameter Top: | 5.007, (127)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1 1/2-16 |
| Beta Ratio: | 2/20=2/7 |
| Burst Pressure-PSI: | 335 |
| Max Flow Rate: | 28-30 GPM |
| Nominal Micron Rating: | 5 |
Gasket Diameters:
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| 15386 Packed | 5.072 (129)* | 4.692 (119)* | 0.187 (5)* |
| 15661 | 5.03 (128)* | 4.44 (113)* | 0.19 (5)* |
| 15859 | 4.762 (121)* | 4.484 (114)* | 0.139 (4)* |
Principal Application:
Cat, Ford/New Holland Equipment (5 Micron) - Gasket 15386 for narrow grove is packed w/ filter - if wide groove gasket required, order 15661 - order separately
If L-shaped gasket required, order 15658& 06/22/2023, (PM)
( )* denotes metric
Technical Bulletins
Videos
Installation Instructions
Additional Applications
Make : ASV+Skid Steer Loaders
Model : MD70
Engine : w / Isuzu 4JB1 Engine
Make : BLAW-KNOX+Paving Equipment
Model : PF5510 (PAVER)
Engine : w / Diesel Engine
Make : CASE / CASE-IH+Windrowers
Model : SCX100 (SWATHER)
Engine :
Make : CATERPILLAR+Crawler Tractors
Model : D6H
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 3ED-04082
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 3ED04083-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 3YG-03999
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 3YG04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 3ZF-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 4GG-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 4LG-03999
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 4LG04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 4RC02445-03999
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 4RC04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 4YF-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 5HF-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 6CF-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 6FC-03999
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 6FC04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 7PC-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 8FC-04091
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 8FC04092-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 8KB-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H 8YC-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 1KD-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 2KD-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 2TG-03999
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 3ED-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 3YG-03999
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 3ZF-03999
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 4LG-03999
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 4RC-03999
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 6FC-03999
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 7PC-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 8FC-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP 8YC-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 2KD04033-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 2TG04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 2TL-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 3YG04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 3ZF04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 4GG05500-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 4LG04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 4RC04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 4YF05500-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 5HF04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 6CF04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 6FC04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 8FC05500-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H LGP SERIES II 8SK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H SERIES II
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H SERIES II 2DK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H SERIES II 7ZK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H SERIES II 9RK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H XL 9KJ-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H XL SERIES II 8KK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H XL SERIES II 8ZJ-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6H XL SERIES II 9LK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6HLS SERIES II 2DK05500-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6HXR SERIES II 1YL-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6HXR SERIES II 2BL-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6HXR SERIES II 5KK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6HXR SERIES II 6CK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6N AKM-ON
Engine : w / Caterpillar 3126B Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6N ALY-ON
Engine : w / Caterpillar 3126B Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6N CBL-ON
Engine : w / Caterpillar C9 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6N CCG-ON
Engine : w / Caterpillar 3126B Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6N CCK-ON
Engine : w / Caterpillar 3126B Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6N CCS-ON
Engine : w / Caterpillar C9 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6N DJA-ON
Engine : w / Caterpillar C6.6 ACERT Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6N LGP
Engine : L6 6.6L 6600cc 403 CID
Make : CATERPILLAR+Crawler Tractors
Model : D6N LGP
Engine : L6 7.1L 7100CC 433CID
Make : CATERPILLAR+Crawler Tractors
Model : D6N LJR-ON
Engine : w / Caterpillar C6.6 ACERT Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6N MLW-ON
Engine : w / Caterpillar C6.6 ACERT Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6N SGG-ON
Engine : L6 7.1L 7100CC 433CID
Make : CATERPILLAR+Crawler Tractors
Model : D6N XL
Engine : w / Caterpillar C6.6 ACERT Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 1RW-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 2HM-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 2YN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 3ZN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 4FM-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 4JR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 4TR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 4WR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 5LN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 5PR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 6FR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 6MR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 7DR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 7GR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 7KN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 8LN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 9BM-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 9MN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 9PN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6R 9ZS-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RLGP 4HN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RLGP 6HR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RLGP 7AR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RLGP 8TM-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RXL 4MN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RXL 4WR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RXL 6FR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RXR 6HR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RXR 6JN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RXR 7AR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RXR 8XN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D6RXW DMP-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7H 2RG-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7H 3XG-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7H 4FG-03999
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7H 4FG04000-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7H 5BF-03999
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7H 5BF04000-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7HLGP 2RG-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7HLGP 3XG-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7HLGP 4FG-03999
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7HLGP 5BF-03999
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7HLGP SERIES II 2RG04000-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7HLGP SERIES II 3XG04000-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7HLGP SERIES II 4FG04000-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7HLGP SERIES II 5BF04000-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7R 2EN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7R 5KZ-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7R 5MR-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D7RLGP 3DN-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Crawler Tractors
Model : D8N 1XJ-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Crawler Tractors
Model : D8N 9TC-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 301.5
Engine : L3 58CID
Make : CATERPILLAR+Excavators
Model : 301.6
Engine : L3 58CID
Make : CATERPILLAR+Excavators
Model : 301.8
Engine : L3 58CID
Make : CATERPILLAR+Excavators
Model : 302.5
Engine : L3 1.5L 1500CC 91.3CID
Make : CATERPILLAR+Excavators
Model : 350 2ZL-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350 3ML-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350 7RK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350 8HK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350 9DK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350 9FL-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350L 2ZL-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350L 3ML-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350L 7RK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350L 8HK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350L 9DK-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 350L 9FL-ON
Engine : w / Caterpillar 3306 Engine
Make : CATERPILLAR+Excavators
Model : 365BL 9PZ-ON
Engine : w / Caterpillar 3196 Engine
Make : CATERPILLAR+Excavators
Model : 365BL 9TZ-ON
Engine : w / Caterpillar 3196 Engine
Make : CATERPILLAR+Excavators
Model : 365BL AGD-ON
Engine : w / Caterpillar 3196 Engine
Make : CATERPILLAR+Excavators
Model : 375 1JM-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375 6NK-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375 6RL-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375 8WJ-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375 8XG-00312
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375 8XG00313-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375 9WL-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375L 1JM-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375L 6NK-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375L 6RL-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375L 8WJ-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375L 8XG-00312
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375L 8XG00313-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 375L 9WL-ON
Engine : w / Caterpillar 3406 Engine
Make : CATERPILLAR+Excavators
Model : 385B ANS-ON
Engine : w / Caterpillar 3456 Engine
Make : CATERPILLAR+Excavators
Model : 385B CKB-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Excavators
Model : 385B CLS-ON
Engine : w / Caterpillar 3456 Engine
Make : CATERPILLAR+Excavators
Model : 385B FDL-ON
Engine : w / Caterpillar 3456 Engine
Make : CATERPILLAR+Excavators
Model : 385BL ANS-ON
Engine : w / Caterpillar 3456 Engine
Make : CATERPILLAR+Excavators
Model : 385BL CKB-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Excavators
Model : 385BL CLS-ON
Engine : w / Caterpillar 3456 Engine
Make : CATERPILLAR+Excavators
Model : 385BL FDL-ON
Engine : w / Caterpillar 3456 Engine
Make : CATERPILLAR+Forestry Equipment, Handlers
Model : 533 CDR-ON
Engine : w / Caterpillar 3126 Engine
Make : CATERPILLAR+Forestry Equipment, Handlers
Model : 543 ASJ-ON
Engine : w / Caterpillar 3126 Engine
Make : CATERPILLAR+Forestry Equipment, Handlers
Model : TK370 WBD-ON
Engine : w / Caterpillar 3126 Engine
Make : CATERPILLAR+Forestry Equipment, Handlers
Model : TK371 WBG-ON
Engine : w / Caterpillar 3126 Engine
Make : CATERPILLAR+Forestry Equipment, Handlers
Model : TK380 WBE-ON
Engine : w / Caterpillar 3126 Engine
Make : CATERPILLAR+Forestry Equipment, Handlers
Model : TK381 WBH-ON
Engine : w / Caterpillar 3126 Engine
Make : CATERPILLAR+Front-Shovel Mining Excavators
Model : 5080 6XK-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Front-Shovel Mining Excavators
Model : 5080 8SL-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Front-Shovel Mining Excavators
Model : 5090B CLD-ON
Engine : w / Caterpillar 3456 Engine
Make : CATERPILLAR+Loaders
Model : 966H
Engine : L6 11.1L 11100CC 677CID
Make : CATERPILLAR+Trucks-Off Highway
Model : 769D 5SS-ON
Engine : w / Caterpillar 3408E Engine
Make : CATERPILLAR+Trucks-Off Highway
Model : 769D 5TR-00504
Engine : w / Caterpillar 3408E Engine
Make : CATERPILLAR+Trucks-Off Highway
Model : 769D BBB-ON
Engine : w / Caterpillar 3408E Engine
Make : CATERPILLAR+Trucks-Off Highway
Model : 771D 6YS-ON
Engine : w / Caterpillar 3408E Engine
Make : CATERPILLAR+Trucks-Off Highway
Model : 773D 7CS-ON
Engine : w / Caterpillar Engine
Make : CATERPILLAR+Trucks-Off Highway
Model : 777D AGC-ON
Engine : w / Caterpillar 3508B Engine
Make : CATERPILLAR+Trucks-Off Highway
Model : 777D AGY-ON
Engine : w / Caterpillar 3508B Engine
Make : CATERPILLAR+Trucks-Off Highway
Model : 777G T5A-ON
Engine : w / Caterpillar C32 Engine
Make : CATERPILLAR+Trucks-Off Highway
Model : 777G TNM-ON
Engine : w / Caterpillar C32 Engine
Make : CATERPILLAR+Trucks-Off Highway
Model : 797 5YW-ON
Engine : w / Caterpillar Engine
Make : HUSTLER+Lawn Tractors
Model : 2500
Engine :
Make : HUSTLER+Lawn Tractors
Model : 251K
Engine :
Make : HUSTLER+Lawn Tractors
Model : 3000
Engine :
Make : HUSTLER+Lawn Tractors
Model : 3200
Engine :
Make : HUSTLER+Lawn Tractors
Model : 3400
Engine :
Make : HUSTLER+Lawn Tractors
Model : 4100
Engine :
Make : JLG INDUSTRIES INC+Aerial Platforms
Model : 100SX
Engine : w / Deutz F4L912 Eng.
Make : JLG INDUSTRIES INC+Aerial Platforms
Model : 100SX
Engine : w / Ford LRG425 Eng.
Make : JLG INDUSTRIES INC+Aerial Platforms
Model : 110SX
Engine : w / Deutz F4L912 Eng.
Make : JLG INDUSTRIES INC+Aerial Platforms
Model : 110SX
Engine : w / Ford LRG425 Eng.
Make : JLG INDUSTRIES INC+Aerial Platforms
Model : 110SXJ
Engine : w / Deutz F4L912 Eng.
Make : JLG INDUSTRIES INC+Aerial Platforms
Model : 110SXJ
Engine : w / Ford LRG425 Eng.
Make : JLG INDUSTRIES INC+Aerial Platforms
Model : 120HX
Engine : w / Deutz F4L912 Eng.
Make : JLG INDUSTRIES INC+Aerial Platforms
Model : 120SXJ
Engine : w / Deutz F4L912 Eng.
Make : JLG INDUSTRIES INC+Aerial Platforms
Model : 120SXJ
Engine : w / Ford LRG425 Eng.
Make : JOHN DEERE+Loaders
Model : 575 (SKID STEER)
Engine : w / Yanmar Diesel Eng.
Make : JOHN DEERE+Loaders
Model : 675 (SKID STEER)
Engine : w / Yanmar Diesel Eng.
Make : JOHN DEERE+Loaders
Model : 675B (SKID STEER)
Engine : w / Yanmar Diesel Eng.
Make : MOFFETT+Forklift
Model : M5000
Engine : w / Kubota V2203 Eng.
Make : MOFFETT+Forklift
Model : M5500
Engine : w / Kubota V2203 Eng.
Make : NEW HOLLAND+Balers
Model : 1065 BALE WAGON
Engine : w / Ford Gas 460 Eng.
Make : NEW HOLLAND+Balers
Model : 1068 BALE WAGON
Engine : w / Ford Gas 460 Eng.
Make : NEW HOLLAND+Balers
Model : 1068 BALE WAGON
Engine : w / Perkins 354 Eng.
Make : NEW HOLLAND+Balers
Model : 1069 BALE WAGON
Engine : w / Ford Gas 460 Eng.
Make : NEW HOLLAND+Balers
Model : 1069 BALE WAGON
Engine : w / Perkins Eng.
Make : NEW HOLLAND+Balers
Model : 1075 BALE WAGON
Engine : w / Ford Gas 460 Eng.
Make : NEW HOLLAND+Balers
Model : 1075 BALE WAGON
Engine : w / Perkins Eng.
Make : NEW HOLLAND+Balers
Model : 1078 BALE WAGON
Engine : w / Ford Diesel Eng.
Make : NEW HOLLAND+Balers
Model : 1079 BALE WAGON
Engine : w / Ford Diesel Eng.
Make : NEW HOLLAND+Balers
Model : 1085 BALE WAGON
Engine : w / Ford 666H Eng.
Make : NEW HOLLAND+Balers
Model : 1085 BALE WAGON
Engine : w / Ford Diesel Eng.
Make : NEW HOLLAND+Balers
Model : 1095 BALE WAGON
Engine : w / Ford Diesel Eng.
Make : NEW HOLLAND+Balers
Model : 8500
Engine : w / Perkins 354 Eng.
Make : NEW HOLLAND+Balers
Model : BW28 BALE WAGON
Engine : 0 6.8L 6800cc 415 CID
Make : NEW HOLLAND+Balers
Model : BW38 BALE WAGON
Engine : 0 6.8L 6800cc 415 CID
Make : NEW HOLLAND+Balers
Model : H9870 BALE WAGON
Engine : 6.7L 6700cc 409 CID
Make : NEW HOLLAND+Balers
Model : H9880 BALE WAGON
Engine : 6.7L 6700cc 409 CID
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR75
Engine : w / Caterpillar Diesel 3208 Eng.
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR75
Engine : w / Ford Diesel 363 Eng.
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR76
Engine : w / Caterpillar Diesel 3208 Eng.
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR85
Engine : w / Caterpillar Diesel 3208 Eng.
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR86
Engine : 7.8L
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR86
Engine : w / Caterpillar Diesel 3208 Eng.
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR87
Engine : 7.5L
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR87
Engine : w / Ford 678HT Eng.
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR88
Engine : 7.5L
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR89
Engine : 7.5L
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR95
Engine : w / Caterpillar Diesel 3208 Eng.
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR96
Engine : 7.8L
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR96
Engine : w / Caterpillar Diesel 3208T Eng.
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR97
Engine : 7.5L
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR97
Engine : 7.8L
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR98
Engine : 7.5L
Make : NEW HOLLAND+Combines, Foragers, Harvesters
Model : TR99
Engine : w / Ford Eng.
Make : NEW HOLLAND+Loaders
Model : L225 (SKID STEER)
Engine : w / Wisconsin TJD Eng.
Make : NEW HOLLAND+Loaders
Model : L325 (SKID STEER)
Engine : w / Kohler K582S Eng.
Make : NEW HOLLAND+Loaders
Model : L325 (SKID STEER)
Engine : w / Wisconsin VH44 Eng.
Make : NEW HOLLAND+Loaders
Model : L325 (SKID STEER)
Engine : w / Wisconsin VH4D Eng.
Make : NEW HOLLAND+Loaders
Model : L425 (SKID STEER)
Engine : w / Kohler K582S Eng.
Make : NEW HOLLAND+Loaders
Model : L425 (SKID STEER)
Engine : w / Wisconsin VH4D Eng.
Make : NEW HOLLAND+Loaders
Model : L445 (SKID STEER)
Engine : w / Deutz F2L411 Eng.
Make : NEW HOLLAND+Loaders
Model : L445 (SKID STEER)
Engine : w / Deutz F2L411D Eng.
Make : NEW HOLLAND+Loaders
Model : L445 (SKID STEER)
Engine : w / Deutz F2L511 Eng.
Make : NEW HOLLAND+Loaders
Model : L445 (SKID STEER)
Engine : w / Wisconsin VH4D Eng.
Make : NEW HOLLAND+Loaders
Model : L451 (SKID STEER)
Engine : w / Deutz F2L511 Eng.
Make : NEW HOLLAND+Loaders
Model : L451 (SKID STEER)
Engine : w / Deutz F2L511D Eng.
Make : NEW HOLLAND+Loaders
Model : L451 (SKID STEER)
Engine : w / Wisconsin VH4D Eng.
Make : NEW HOLLAND+Loaders
Model : L452 (SKID STEER)
Engine : w / Wisconsin VH4D Eng.
Make : NEW HOLLAND+Loaders
Model : L454 (SKID STEER)
Engine : w / Continental TM13 Eng.
Make : NEW HOLLAND+Loaders
Model : L454 (SKID STEER)
Engine : w / Ford VSG411 Eng.
Make : NEW HOLLAND+Loaders
Model : L455 (SKID STEER)
Engine : w / Kubota Diesel B1402D Eng.
Make : NEW HOLLAND+Loaders
Model : L455 (SKID STEER)
Engine : w / Kubota V1902B Eng.
Make : NEW HOLLAND+Loaders
Model : L552 (SKID STEER)
Engine : w / Kubota Diesel V1902B-4/108 Eng.
Make : NEW HOLLAND+Loaders
Model : L552 (SKID STEER)
Engine : w / Kubota V1902 Eng.
Make : NEW HOLLAND+Loaders
Model : L553 (SKID STEER)
Engine : w / Kubota Diesel V1902B-4/108 Eng.
Make : NEW HOLLAND+Loaders
Model : L553 (SKID STEER)
Engine : w / Kubota V1902 Eng.
Make : NEW HOLLAND+Loaders
Model : L554 (SKID STEER)
Engine : w / Continental Gas TM20 Eng.
Make : NEW HOLLAND+Loaders
Model : L555 (SKID STEER)
Engine : w / Kubota Diesel V1902B-4/108 Eng.
Make : NEW HOLLAND+Loaders
Model : L555 (SKID STEER)
Engine : w / Kubota V1902 Eng.
Make : NEW HOLLAND+Loaders
Model : L555 (SKID STEER)
Engine : w / Perkins 4.108 Eng.
Make : NEW HOLLAND+Loaders
Model : L555 SUPER (SKID STEER)
Engine : w / Kubota Diesel Eng.
Make : NEW HOLLAND+Loaders
Model : L555D (SKID STEER)
Engine : w / Kubota V1902B Eng.
Make : NEW HOLLAND+Loaders
Model : L600 (ARTICULATED LOADER)
Engine : w / Onan L423D Eng.
Make : NEW HOLLAND+Loaders
Model : L778 (SKID STEER)
Engine : w / Ford 192 Eng.
Make : NEW HOLLAND+Loaders
Model : L779 (SKID STEER)
Engine : w / Ford Gas Eng.
Make : NEW HOLLAND+Loaders
Model : L779 (SKID STEER)
Engine : w / Perkins 4.203.2 Eng.
Make : NEW HOLLAND+Loaders
Model : L781 (SKID STEER)
Engine : w / Deutz F3L912 Eng.
Make : NEW HOLLAND+Loaders
Model : L783 (SKID STEER)
Engine : w / Ford BSD333 Eng.
Make : NEW HOLLAND+Loaders
Model : L783 (SKID STEER)
Engine : w / Perkins 4.203.2 Eng.
Make : NEW HOLLAND+Loaders
Model : L784 (SKID STEER)
Engine : w / Ford Gas Eng.
Make : NEW HOLLAND+Loaders
Model : L785 (SKID STEER)
Engine : w / Ford BSD333 Eng.
Make : NEW HOLLAND+Loaders
Model : L785 (SKID STEER)
Engine : w / Perkins Eng.
Make : NEW HOLLAND+Loaders
Model : LB620 (BACKHOE LOADER)
Engine : w / Onan L423D Eng.
Make : NEW HOLLAND+Speedrowers, Swathers
Model : H8040
Engine :
Make : NEW HOLLAND+Speedrowers, Swathers
Model : HW300
Engine : w / Iveco Eng.
Make : NEW HOLLAND+Speedrowers, Swathers
Model : HW320
Engine : w / Ford Diesel Eng.
Make : NEW HOLLAND+Windrowers
Model : 2450
Engine : 304 CID
Make : NEW HOLLAND+Windrowers
Model : 2550
Engine : 304 CID
Make : NEW HOLLAND+Windrowers
Model : HW300
Engine : 5.0L
Make : NEW HOLLAND+Windrowers
Model : HW320
Engine : 5.0L
Make : NEW HOLLAND+Windrowers
Model : HW340
Engine : 7.5L
Make : PRENTICE+Loaders
Model : 384TMS II
Engine : w / Cummins Diesel 6BT5.9 Eng.
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ40T
Engine : 3.0L
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ40T
Engine : w / Deutz Diesel D2011L03i Eng.
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ45T
Engine : 3.0L
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ45T
Engine : w / Deutz Diesel D2011L03i Eng.
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ46A
Engine : 3.0L
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ46A
Engine : w / Deutz Diesel D2011L03i Eng.
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ46AJ
Engine : 3.0L
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ46AJ
Engine : w / Deutz Diesel D2011L03i Eng.
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ51AJ
Engine : 3.0L
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ51AJ
Engine : w / Deutz Diesel D2011L03i Eng.
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ61T
Engine : 3.0L
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ61T
Engine : w / Deutz Diesel D2011L04i Eng.
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ66T
Engine : 3.0L
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ66T
Engine : w / Deutz Diesel D2011L03i Eng.
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ66T
Engine : w / Deutz Diesel D2011L04i Eng.
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ85AJ
Engine : L4 2.9L 2900CC 177CID
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ86T
Engine : L3 2.2L 2200CC 134CID
Make : SKYJACK+Telescopic Boom Lifts
Model : SJ86T
Engine : w / Deutz Diesel D2011L04i Eng.
Make : SWINGER+Loaders
Model : 110B
Engine :
Make : WILLMAR+Sprayers
Model : 6200 XPLORER
Engine : w / John Deere 4045T PowerTech Eng.
Make : WILLMAR+Sprayers
Model : 6400 XPLORER
Engine : w / John Deere 4045T PowerTech Eng.
Make : WILLMAR+Sprayers
Model : 7200 RANGER
Engine : 5.9L
Make : WILLMAR+Sprayers
Model : 7250 RANGER
Engine : 5.9L
Make : WILLMAR+Sprayers
Model : 7400 RANGER
Engine : 5.9L
Make : WILLMAR+Sprayers
Model : 745 AIR RIDE
Engine : w / John Deere 4039T Eng.
Make : WILLMAR+Sprayers
Model : 7450 RANGER
Engine : 5.9L
Make : WILLMAR+Sprayers
Model : 750 AIR RIDE
Engine : w / John Deere 4039T Eng.
Make : WILLMAR+Sprayers
Model : 750A AIR RIDE
Engine : w / John Deere 4039T Eng.
Make : WILLMAR+Sprayers
Model : 760 AIR RIDE
Engine : w / John Deere 4045T Eng.
Make : WILLMAR+Sprayers
Model : 760HT AIR RIDE
Engine : w / John Deere 4045T Eng.
Make : WILLMAR+Sprayers
Model : 765 AIR RIDE
Engine : w / John Deere 4045T Eng.
Make : WILLMAR+Sprayers
Model : 765HT AIR RIDE
Engine : w / John Deere 4045T Eng.
Make : WILLMAR+Sprayers
Model : 785 AIR TRACK
Engine : 5.9L
Make : WILLMAR+Sprayers
Model : 8100 EAGLE
Engine : 5.9L
Make : WILLMAR+Sprayers
Model : 8500 EAGLE
Engine : 5.9L
CONTACT US
Address
P.O. BOX 1967
Gastonia, NC
28053-1967
+1(704)864-6748
Fax: (704) 864-9277
HOURS OF OPERATION
8:00am to 5:00pm EST
Address
P.O. BOX 1967
Gastonia, NC
28053-1967
+1(704)864-6748
Fax: (704) 864-9277
HOURS OF OPERATION
8:00am to 5:00pm EST
WIX Sales:
+1(704)864-6748
Filter Interchange/Application Hotline:
1-800-949-6698
Customer Service:
+1(704)864-6748
Technical Service Fax:
(704) 853-6149
+1(704)864-6748
Filter Interchange/Application Hotline:
1-800-949-6698
Customer Service:
+1(704)864-6748
Technical Service Fax:
(704) 853-6149
Filter Locations
Fuel Filter Locations
| A | ECF = Engine Compartment Front |
| B | ECC = Engine Compartment Center |
| C | ECR = Engine Compartment Rear |
| D | ECFDS = Engine Compartment Front Driver Side |
| E | ECFPS = Engine Compartment Front Passenger Side |
| F | ECRDS = Engine Compartment Rear Driver Side |
| G | ECRPS = Engine Compartment Rear Passenger Side |
| H | FRF = Frame Front |
| I | FRC = Frame Center |
| J | FRR = Frame Rear |
| K | FRFDS = Frame Front Driver Side |
| L | FRFPS = Frame Front Passenger Side |
| M | FRCDS = Frame Center Driver Side |
| N | FRCPS = Frame Center Passenger Side |
| O | FRRDS = Frame Rear Driver Side |
| P | FRRPS = Frame Rear Passenger Side |
| Q | FTA = Fuel Tank Area |
| R | IFT = In Fuel Tank |
Cabin Air Filter Locations
| 1 | Passenger Side Under Hood and Cowl |
| 2 | Passenger Side Under Hood In Cowl |
| 3 | Behind Glove Box (glove box must be removed) |
| 4 | Under Glove Box |
| 5 | In Rear of Glove Box (compartment in back in glove box) |
| 6 | Under Center of Dash |
| 7 | Behind Passenger Side Interior Kick Panel |
| 8 | Under Hood in Center |
| 9 | Rear Cargo Area - Drive's Side Trim Panel |
